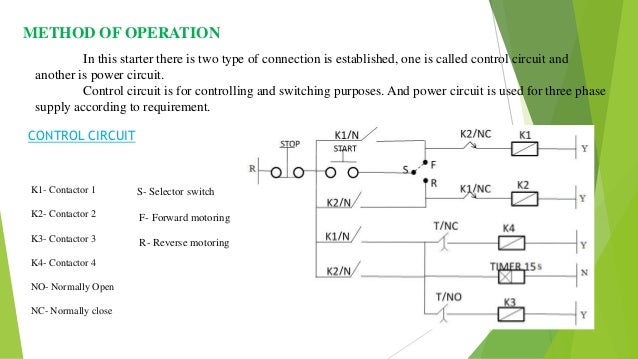

Control wiring for star delta starter. In control wiring diagram all magnetic contactors coils are rated 220 vac. Size of each part of star delta starter 1. In the above star delta starter control circuit wiring diagram with timer and normally close push buttonnormally open push button switch. Star delta starter without timer for 3 phase induction motor. The on delay timer diagram is also shown in the diagram. A 8 pin timer are used.
Star delta starter control circuit diagram is today topic. R y b red yellow blue 3 phase linescb general circuit breakermain mai supplyy starδ deltac1 c2 c3 contatcors power diagramol over load relayno normally opennc normally closed k1 contactor contactor coil k1no contactor holding coil. Size of over load relay. In my last post i share a star delta starter wiring diagram 3 phase motor connection. Here the circuit diagram of star delta starter explained in detailhere you will learn the connection of star delta starter with three phase motorthe power circuit diagram and control circuit diagram of an automatic star delta starter are explained belowlets understand the star delta starter diagram. In this post you will learn complete star delta starter wiring with timer normally open push button switch and normally close push button switch.
Overload relay in line. Star delta starter control circuit diagram star delta control circuit star delta motor connection motor control with circuit diagram understanding star delta starter how to work a star delta starter. For a star delta starter there is a possibility to place the overload protection in two positions in the line or in the windings. This is a big advantage of a star delta starter as it typically has around 13 of the inrush current compared to a dol starter. Related queries star delta starter wiring star delta starter control wiring connection star delta starter connection star delta control wiring diagram i am paresh patel welcome to our youtube. In the line is the same as just putting the overload before the motor as with a dol starter.
Power and control circuit. In this tutorial we will show the star delta y δ 3 phase induction ac motor starting method by automatic star delta starter with timer with schematic power control and wiring diagram as well as how star delta starter works and their applications with advantages and disadvantages. A star delta starter is a type of reduced voltage starterwe use it to reduce the starting current of the motor without using any external device or apparatus.
