A compounded dc motor is constructed so that it contains both a shunt and a series field. The connection diagram of the compound motor is shown below.
Basics Of Dc Motors For Electrical Engineers Beginners

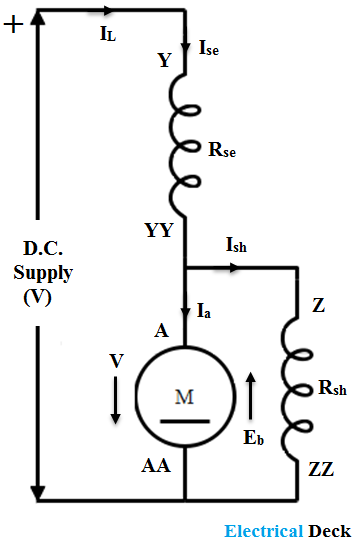

Compound motor diagram. By electrical4u a compound wound dc motor also known as a dc compound motor is a type of self excited motor and is made up of both series the field coils s 1 s 2 and shunt field coils f 1 f 2 connected to the armature winding as shown in the figure below. Compound electric motors have both a series and a shunt field winding giving it a hybrid operating characteristic. A dc motor having both shunt and series field windings is called a compound motor. The connection diagram of the compound motor is shown below. This particular schematic shows a cumulatively compounded dc motor because the shunt and series fields are aiding one another. The compound wound circuit diagram is shown in the figure below.
It is also a kind self excited motor and it uses the advantages of both shunt and series dc motors. Dc compound motor or compound wound dc motor is also a self excited motor but it is a compound of both series and shunt field coils connected to the armature winding a series field winding connected in series with the armature and a shunt field winding connected in parallel to the armature. Ask your students to draw the schematic diagram of a compound dc motor showing both field winding sets. The motor field windings for a series motor are in series with the armature. It uses the good speed regulation property of shunt motor and high starting torque capability of a series motor. Briefly we can say that dc compound motor is a combination of.
