How to wire star delta motor starter. For star delta staterthe motor connection must have 6 cables from control panel and 6 terminals at induction motor u1u2v1v2w1w3to wiring the motor connection for star delta starterthe important thing that we must fully understand is about the basic of star delta magic triangle.
Wiring Diagram Star Delta Manual Diagram Base Website Delta
Diagram wiring star delta. Power and control circuit. For three phase motor we use the direct online starter but mostly for small three phase motor. Star delta motor connection. A dual starter connects the motor terminals directly to the power supplyhence the motor is subjected to the full voltage of the power supplyconsequently high starting current flows through the motor. The power circuit diagram and control circuit diagram of an automatic star delta starter are explained below. Wiring diagram for star delta motor starter best wiring diagram star.
This type of starting is suitable for small motors below 5 hp 375 kw. Here you will learn the connection of star delta starter with three phase motor. But high load 3 phase motor we use the star delta starter for motor. It is also important that the switch over pause is not too long it may generate a voltage of its own and this. Wye delta starter wiring diagram sanelijomiddle wire center. Lets understand the star delta starter diagram.
Wiring diagram star delta connection in 3 phase induction motor. Star delta starter wiring diagram this post is about the main wiring connection of three phase motor with star delta starter and control wiring diagram of star delta starter. Wye start delta run motor wiring diagram collections of great three phase motor wiring diagram 3 star delta and how to wire. It is important that the break between star contractor switch off and delta contactor switch is on because star contactor must be reliably quenched before delta contactor is activated. During transition period of switch over the motor must be free running with little deceleration. Star delta starter control circuit diagram star delta control circuit star delta motor connection motor control with circuit.

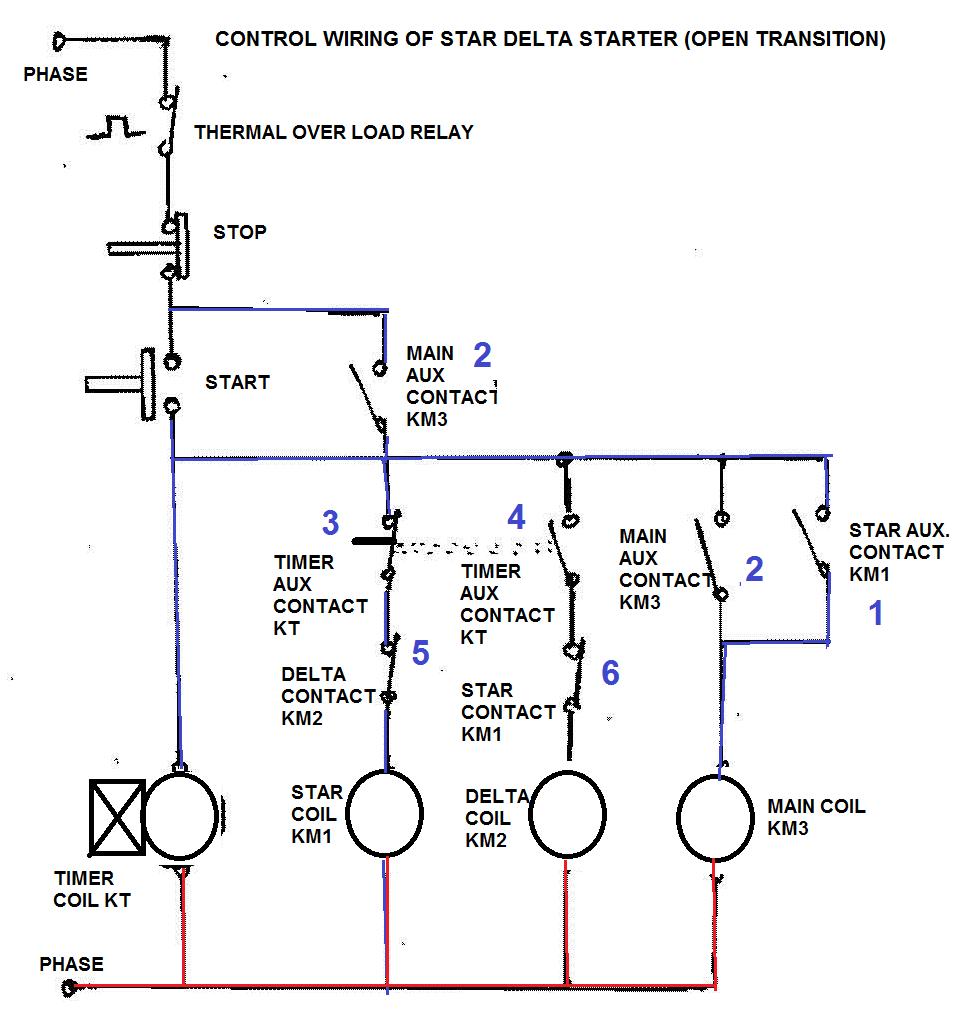

Wye delta starter wiring diagram sanelijomiddle wire center. In this tutorial we will show the star delta y δ 3 phase induction ac motor starting method by automatic star delta starter with timer with schematic power control and wiring diagram as well as how star delta starter works and their applications with advantages and disadvantages. Star delta connection diagram and working principle. As the name suggests an outline of the wye delta starter works in two stages beginning with the motor. A star delta starter is a type of reduced voltage starterwe use it to reduce the starting current of the motor without using any external device or apparatus. Here the circuit diagram of star delta starter explained in detail.
This is a big advantage of a star delta starter as it typically has around 13 of the inrush current compared to a dol starter.
