Peco point motor wiring diagram. That bulletin also includes how to improve the look of a peco point so the more adventurous among you might like to check it out. Heres the wiring diagram on the instruction sheet that comes with the pl 10w motor. Wiring harness for pl 10 series turnout motors makes wiring the pl 10 series of motors quick and easy. Dean park station video 9 how to wiring up peco turnouts for dcc with peco point motors duration. Pennyhill junction 31630 views. Please keep in mind that this diagram shows the wiring to the motor only if you have electrofrog turnouts you need a pl 13 switch or similar to control the polarity of the frog.

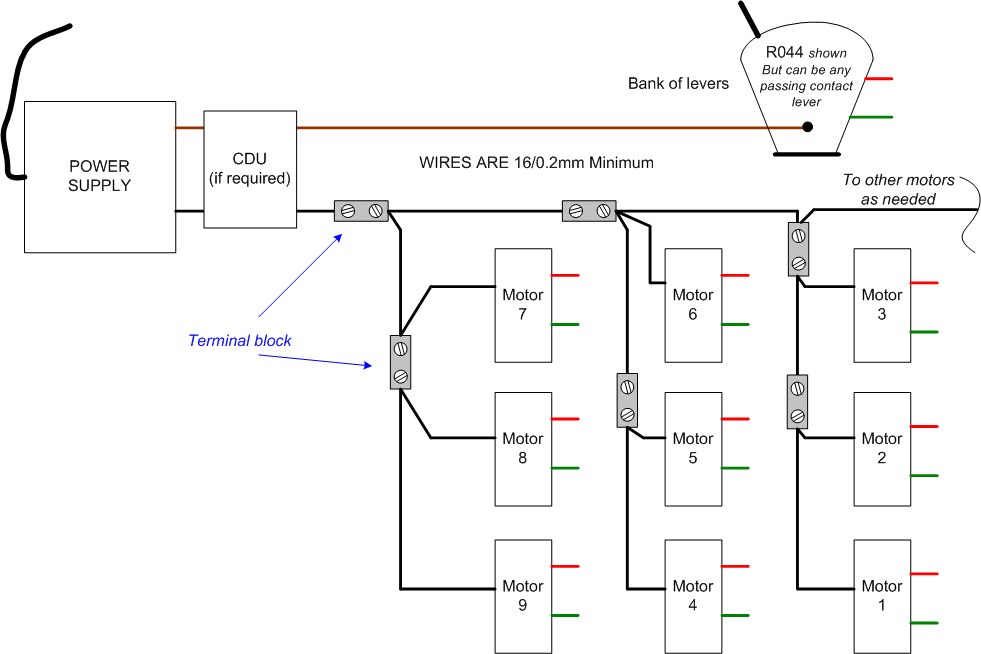

Turnout motor the pl series of turnout motors is tried and tested over the last 40 years we have sold literally millions of these motors. Peco pl 13 accessory switches fit directly onto hornby point motors without modification and can be used for frog switching on live frog points such as peco electrofrogs points operated signalling to provide feedback for automatic control or just to indicate on a control panel that the point has. Basic point wiring diagram with hornby r044 passing contact switch. Just a simple push fit onto the motor terminals. The basics of wiring a turnout correctly. Wiring diagram for the peco 3 way electrofrog please note that in order to make the wiring diagram as neat and simple as possible the position of the tortoises are reversed underneath the turnout.
Peco pl 10e point motor installation duration. How to install and wire a point motor when the track has already been laid or the point are old so are missing the hole for the point motor is always annoying. The other ends are tinned and ready for the pl 39 terminal block pl 50 switch module unit or pl 31 push on terminal connectors. Requires a rectangular hole 40mm x 24mm when clipped directly to the underside of a peco turnout. We also cover this subject in detail in another advice chapter advice 2making peco better. But this guide should hopefully help.
Simple reliable and good value. Peco code 100 electrofrog 3 way turnout bottom the red arrow shows the connection between two of the frogs.
