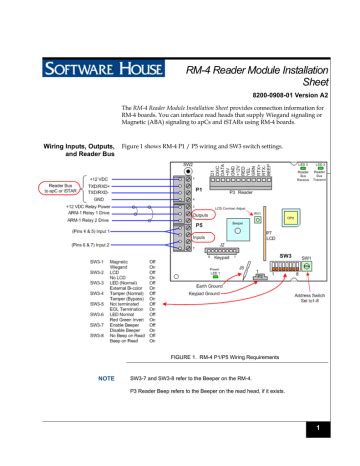

Wiring inputs outputs and reader bus figure 1 shows rm 4 p1 p5 wiring and sw3 switch settings. House electrical plan software for creating great looking home floor electrical plan using professional electrical symbols.
Istar Pro 4u Rack Mount Quick Start Installation Guide
Software house rm4 wiring diagram. The rm 4 reader module is a circuit board that creates the connectivity between a reader and an apc or istar controller when third party card readers are used on a ccure system. Electrical circuit diagrams schematics electrical wiring circuit schematics digital circuits wiring. Information about other products furnished by software house is believed to be accurate. Rm 4e power wiring method a method a via power in software house recommends method a for powering the circuitry. In addition the rm 4 reader module provides two supervised inputs and two outputs and can be mounted in any suitable enclosure. Software house apc8x star coupler rm4 ad300 ad400 wiegand software house apc8x wpsc ad300 ad400 wiegand.
Conceptdraw is a fast way to draw. Wiring diagrams for software house c cure 9000 and c cure 8008000 access control system with ad 300 hardwired ad 400 wireless devices. Rm 4 version 30 rm 4e version 104. P3 reader beep refers to the beeper on the read head if it exists. However no responsibility is assumed by software house for the use of these products or for an infringement of rights of the other companies that may result from their use. You can use many of built in templates electrical symbols and electical schemes examples of our house electrical diagram software.
Rm 4 p1p5 wiring requirements note sw3 7 and sw3 8 refer to the beeper on the rm 4. Method a allows the circuitry to be powered with either 12 vdc or 24 vdc and also supplies battery charging power. Connect 12 or 24 vdc 5 to pin 2 of the power in connector.
