The initial connection should be in the star pattern that results in a reduction of the line voltage by a factor of 13 577 to the motor and the current is reduced. Star delta starter wiring diagram this post is about the main wiring connection of three phase motor with star delta starter and control wiring diagram of star delta starter.
Star Delta Starter Connection Working Advantages Video

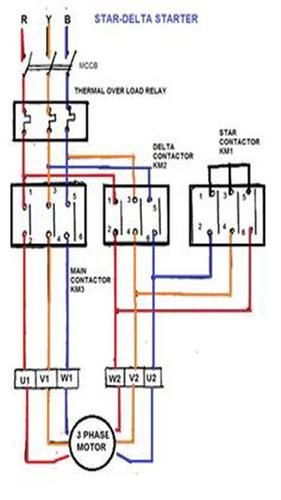

Star delta starter connection diagram. The basics of each star and delta configuration a wiring diagram animations of star delta starters and some simplified worked example calculations. Star delta connection circuit diagram. Refer to the below star delta circuit. This type of starting is suitable for small motors below 5 hp 375 kw. Star delta starter is an electrical motor starting device generally uses in big size motor to overcome some technical limitation. A dual starter connects the motor terminals directly to the power supplyhence the motor is subjected to the full voltage of the power supplyconsequently high starting current flows through the motor.
But high load 3 phase motor we use the star delta starter for motor. The power circuit uses to create contact between the motor and three phase power supply. The control circuit uses to control the starter circuit such as on off and tripping operations. Star delta starter control circuit diagram star delta control circuit star delta motor connection motor control with circuit. How to wire star delta motor starter. In this tutorial we will show the star delta y δ 3 phase induction ac motor starting method by automatic star delta starter with timer with schematic power control and wiring diagram as well as how star delta starter works and their applications with advantages and disadvantages.
For three phase motor we use the direct online starter but mostly for small three phase motor. Star and delta means here 2 separate states of motor running first star connection and then delta connection. Power and control circuit. Star delta starters consist of a power circuit and control circuit. Then once the motor reaches the required speed the motor is connected in through a delta connection. The star delta wye delta starting method controls whether the lead connections from the motor are configured in a star or delta electrical connection.
Star delta connection diagram and working principle. A star delta starter is the most commonly used method for the starting of a 3 phase induction motorin star delta starting an induction motor is connected in through a star connection throughout the starting period. Here the circuit diagram of star delta starter explained in detailhere you will learn the connection of star delta starter with three phase motorthe power circuit diagram and control circuit diagram of an automatic star delta starter are explained belowlets understand the star delta starter diagram.
