Tele 4 way switch wiring diagram. Complete kit for wiring a tele with a fourth fat tone switch position. What we will do is give you a lead that runs off of the cover. Tele wiring diagram with 2 single coils 1 volume 1 tone and the fender 4 way mod lever switch. In the series setting the output will be stronger and have more bass than the standard middle neckbridge in parallel switch position. You get all the parts youll need to wire your pickups into your tele plus a diagram to show you how. This special kit features an oak grigsby 4 way switch.
Telecaster 4 way wiring diagrams this wiring diagram assumes you are using a metal control plate. 572006 44343 pm. The worlds largest selection of free guitar wiring diagrams. The extra position combines the bridge and neck pickups in series for a fatter tone. Truly we have been remarked that telecaster 4 way switch wiring diagram is being just about the most popular topic at this moment. Tele with 4 way switch.
Basically clip the jumper wire that grounds your cover to your black lead. Volume 250k tone hot output output jack o o o o o o sleeve ground. This is another cool wiring scheme that gives you all the traditional sounds plus something extra. 1the mod is invisible from the outside and it provides this switching matrix. If you are not using a metal control plate you will need to run a small ground wire from the volume pot to the tone pot. The only special part you need is a 4 way switch.
So that we attempted to locate some good telecaster 4 way switch wiring. The resulting tone increases a telecasters versatility so it wasnt long before someone came up with a nice solution. We sell tapped tele pickups individually and as part of the custom shop 53 tapped tele model t guitar shop set which includes a 5 way switch. Tele wiring diagram 4way author. Simply replace the standard 3 way switch with a special 4 way switch and follow the fender wiring diagram in fig. If you already have a tele neck and want to convert to a 4 way switch you will need to solder a wire to your cover and remove the ground connection from your coil.

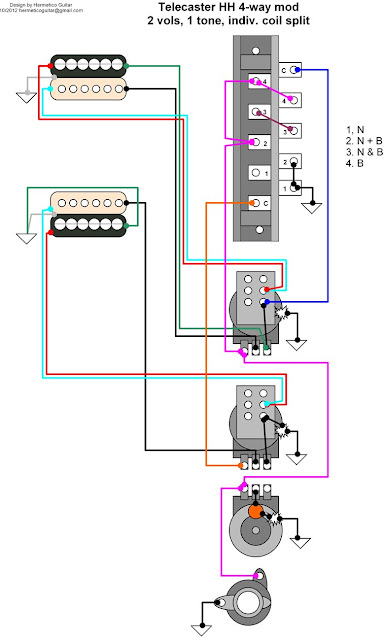

Switch volume pot 250k. This diagram shows how to wire a telecaster style guitar with the fender 4 way mod switch to add the neckbridge in series option.
