This is not so. In the vast majority of cases the other two wires go unused but if you choose you can certainly use them for a.
Phone Home Wiring Diagram Wiring Diagram Source
Telephone house wiring diagram. But not necessarily the. All telephones residential telephone jacks connectors etc that you can buy today follow this wiring convention. In either case the important point is this. This is a gray or tan box that measures roughly 8 inches by 12 inches. This telephone wiring diagram with photos and instructions will show you the direct steps to correctly wiring a telephone jack. The fact is that small wiring jobs in your house or small business can be much easier than youd expect much easier than shelling out exorbitant hourly fees to the phone company.

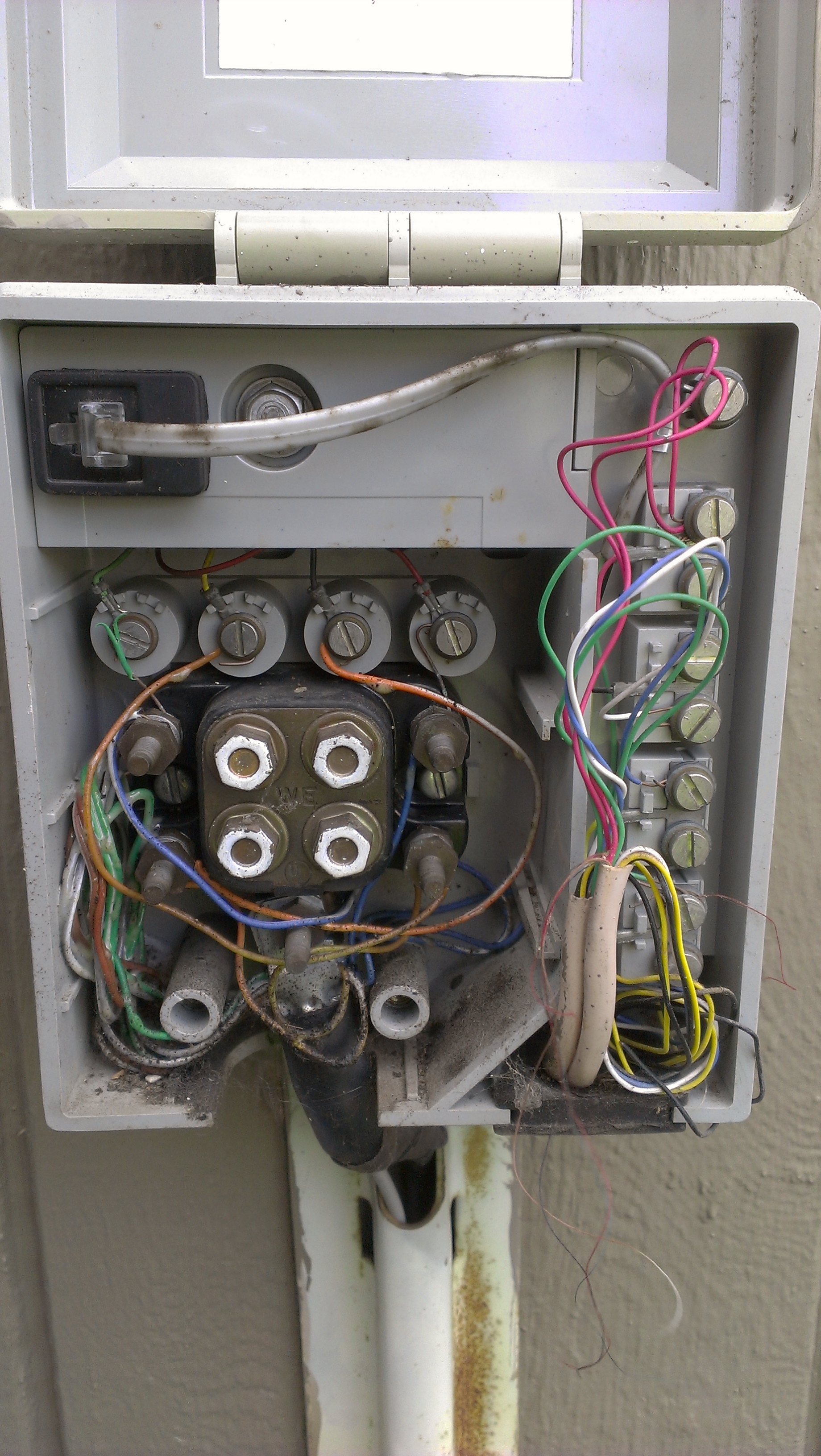

A lot of people shy away from home telephone wiring. Wiring a telephone jack after installing the cat 3 3 pair phone wire i am ready to install the wall jack. All of the cat 5 wire ive seen uses the following color coding. The basics of telephone wiring feat for the average non technical person. Locate the network interface device box on the outside of your house. If you can figure.
They may think that they are not allowed to touch the existing ones. Fyi if purchase multiwire cable with 4 pair 8 colored wires for four lines the wiring convention is the same as above with line 3 using blue white and line 4 using orange brown. One phone line only requires two of these strands. For all new telephone wiring projects you should use cat 5 cable. Your local phone company will come and do your wiring for you but it will cost you. The network interface device box is where the telephone wire from the phone company terminates and also where the phone wiring going into the house will connect to your landline phone.
Wiring a jack is not difficult and it is totally fine to add a new jack or internet phone jack to your system.
