2 shows circuit diagram of the digital temperature controller. Pin 24 is connected to another transistor bc547 which drives the relay.
Circuits Faq Electronic Product Design Precision

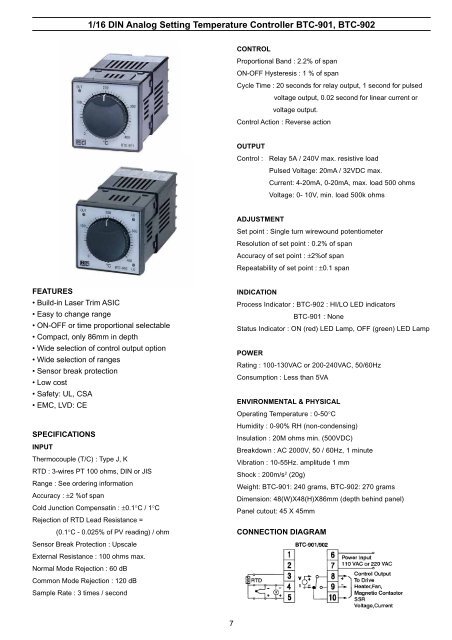

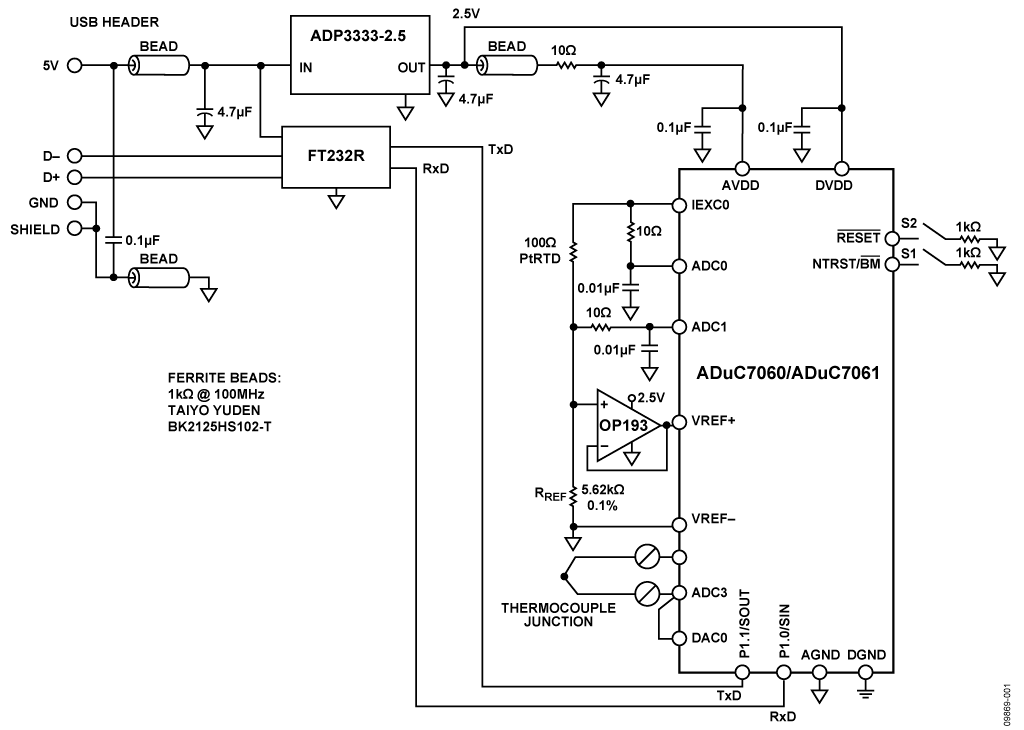

Temperature controller connection diagram. It reveals the parts of the circuit as streamlined forms and also the power and signal links in between the tools. 7 8 2 for three wire pt 100. It is based on the principle of wheatstone bridge. 1 for thermocouple tctc 6 7 8 910 thermocouple 1 for two wire pt 100. See figure 1 the picture below is an example the type you purchased may deviate from this. Connect rtd1 rtd2 of a b rtd 6 7 8 910.
The controller has been designed and fabricated using the op amp ic 741 and a 1k thermistor as the temperature sensor. Digital temperature controller schematic diagram. Most connections and numbers are identical however. Circuit diagram temperature control. Connect pt100 between terminal no. 7hup 7huplqdo v 1 2 are the control output for heating cooling unit.
The temperature controller takes an input from a temperature sensor and has an output that is connected to a control element such as a heater or fan. The voltage across the thermistor ie. Pin 00 to 06 of port 0 of microcontroller is connected to 7 segment display. Pin 20 to 23 of port 2 of microcontroller are connected to transistors bc547 of port 2 of microcontroller is connected to transistors bc547. Ause of mov across supply of temperature controller snubber circuits across loads are recommended buse s connection diagram. Assortment of ranco temperature controller wiring diagram.
Sn technical 37706 views. Short terminals 8 9. To accurately control process temperature without extensive operator involvement a temperature control system relies upon a controller which accepts a temperature sensor such as a thermocouple. A wiring diagram is a streamlined traditional pictorial representation of an electric circuit. Temperature controller connection with solid state relay duration. The ratio arms r1 and r2 of the bridge are kept fixed say unity.
A proportionalintegralderivative controller pid controller or three term controller is a control loop feedback mechanism controller widely used in indu. Pid temperature controller in a box duration. A connection diagram is displayed on the side of each controller. It shows the parts of the circuit as streamlined forms as well as the power and also signal connections in between the devices. A wiring diagram is a simplified conventional pictorial representation of an electrical circuit. The circuit is built around microcontroller pic16f877a ic1 precision thermocouple amplifier ad8495 ic2 k type thermocouple connected at con3 162 lcd lcd1 single changeover relay rl1 and a few common components.
