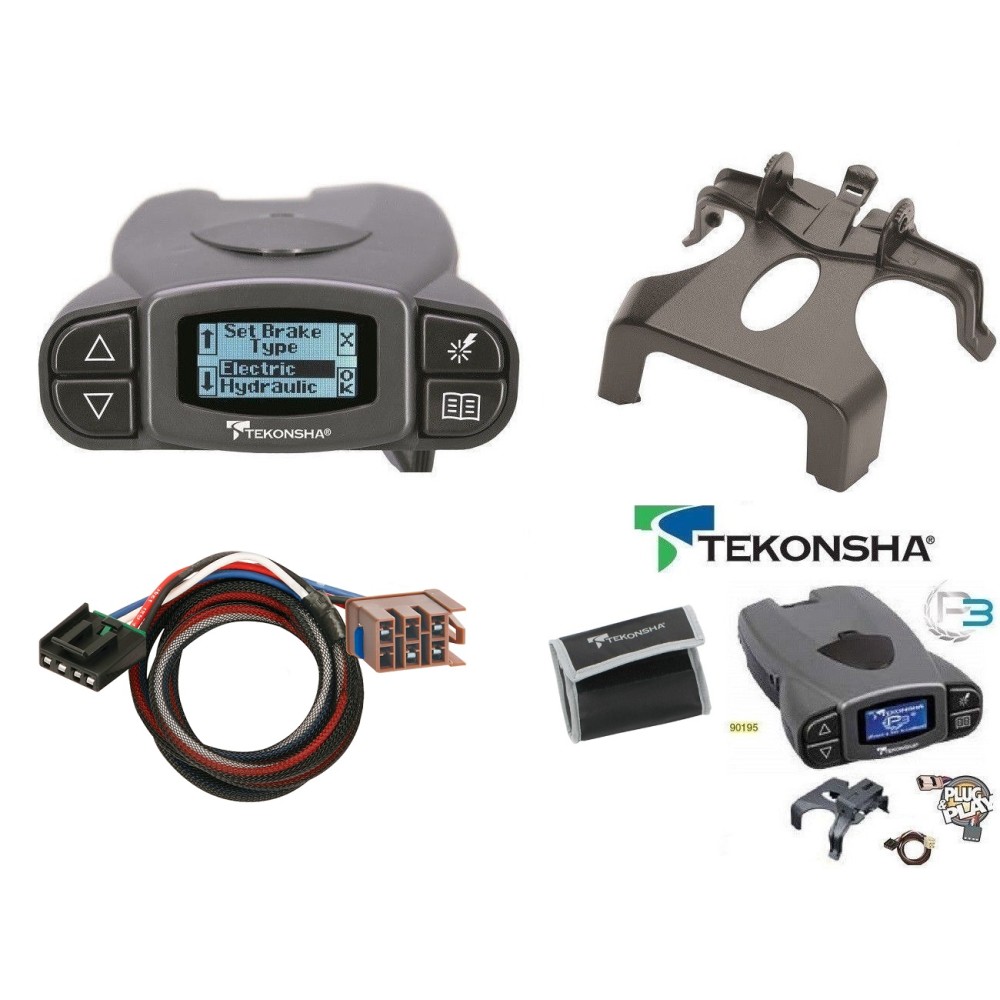

Tekonsha 90195 P3 Electronic Brake Control
Wiring diagram for tekonsha p3 brake controller. Use pigtail wiring harness included. A true proportional braking system p3 has several added features making it the new standard for electric trailer brake controls. Tekonsha trailer brake controller wiring diagram tekonsha electric trailer brake controller wiring diagram tekonsha p3 electric brake controller wiring diagram tekonsha p3 prodigy electric trailer brake controller wiring diagram folks comprehend that trailer is a vehicle comprised of very complicated mechanics. Installing prodigy p3 brake controller in 2016 silverado 2500hd with oem controller. This connector allows you two options to wire your brake control. Wiring brake control your p3 brake control has a unique connector located at the back of the control.
The prodigy p3 trailer brake controller uses a 4 wire hookup. See diagram for mounting the p3. The red wire takes in the brake light signal from the cold side of the brake light switch and is used to trigger the p3 to send out a brake signal on the blue wire. The white wire is to be grounded to the battery negative terminal. Replacement for malfunctioning draw tite activator ii trailer brake controller. The p3 can be mounted from 0 degrees to 360 degrees vertically in the direction of travel.
Connect the pigtail style wiring harness included with the purchase of the tekonsha brake controller to the back of the in cab controller unit. Following the wiring diagram included with the controller run the blue wire through the firewall and to the rear of the vehicle where it will connect to the trailer connector. 5 storable setting options for pulling different trailers or preferences of multiple drivers. The black power wire connects to the battery hot terminal through a circuit breaker. P3 the industries most advanced electric trailer brake control. This car is designed not only to travel one location to another but also to.
