So a shorted sensor will render the crank sensor inoperable. If the pump pressure is too low the oil differential pressure is insufficient to move the cylinder.
Oil Pressure Controls Hvac School
Delta p oil pressure switch wiring diagram. If possible mount the control indoors. Delta p control 2 the delta p control is factory set for 115 v. Pressure switches are used on water pumps for the accurate control of the pump as it produces pressurized water. However with the pressure switch the pump can be adjusted to turn on and off at predetermined settings to control the pump and subsequent pressure. D7830416e application engineering europe dwm copeland semi hermetic compressors oil pressure differential switch ops2 1 introduction the ops2 monitors the oil pressure differential protecting the compressor against damage if the oil differential becomes too low. Choose a location near the unit that permits access to the keypad for adjustments and observation of the pressure drop.

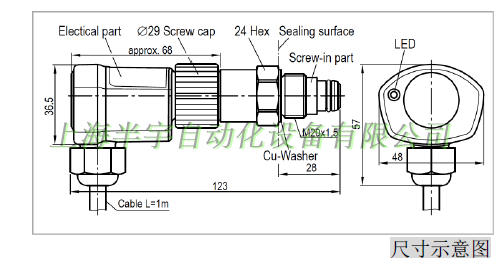

Without the use of the switch the water pump would always be on or off. Watch as danfoss own will guides you through two different ways to wire an mp differential pressure switch which is used to protect refrigeration compressors against low lubricating oil pressure. Delta p ii differential oil pressure sensor delta p ii delta p ii wiring diagram dimensions in mm l1 l2 l3 n pe 3npe ac 5060hz 400v m 3 ac f1f3 reset k1 c lp hp reset on alarm h1 pk k1 og delta p ii f4 l1 bn d1 vt gy n bu 01 electrical part ø 29 screwcap sealing surface screw in part led reset button 57 48 cable l1m. 095p date of last update. It so happens that on some vehicles cadillacs the high pressure sensor is connected to the other sensor voltage reference line. To operate at 230 v the jumper settings on the printed circuit board must be changed.
In this case the sensor signals this promptly to the connected electrical device on the int250 or interprets the signal independently on the delta p ii and ops 2 and switches off the compressor via the safety chain.
