Eg if a doorbell required 12 or 24 volt v and we have 220 volt ac incoming supply. Connect the input wires on the transformer to the source circuit using the black to black white to white and ground to green method.
How Do Electric Doorbells Work Explain That Stuff
Electric doorbell diagram. At the transformer remove the outer sheathing from both the two stranded wire connected to the doorbell and the three stranded wire connected to the door chime. Step 8 wire the transformer. The next diagram for those bells which dont have internal power supply or transformer which step down the electric current. This simple and cost effective ding dong electronic doorbell circuit is based on ic 8021 2. The sound is stored in the ic as bits as in a rom. Strip about a 12 inch from the ends of each wire using the wire strippers.

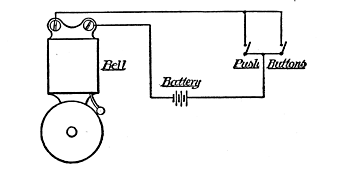

This slightly more sophisticated electric doorbell dating from the early 20th century uses two interlinked circuits. Wiring diagram for a two chime doorbell wiring for two doors is the same as for one with the transformer hardwired to the 120 volt source from a house circuit. How to wire a doorbell with step down transformer the next doorbell diagram for those door bells which required a step down transformer. The first one shown in red connects a pressure switch green 12 battery 10 and lamp yellow 21. The ic has an in built circuitry to produce ding dong sound each time its pin 3 is pulled low. The system is wired by running a wire from one side of the transformer to the common terminal of the doorbell unit and the other side through the push buttons at each door and then back to the one ring and the two ring terminals in the unit.
Affix the doorbell to the jamb or wall using the applicable mounting screws.
