I have everything mounted lights relay dash switch and all the wiring is ready to connectbut i cant seem to determine which of the two wires that go down to the headlight is the actual high beam that i need to join in to because when i run a test light to find the correct wire. Suitable for kings 7 9 spotties includes h4 hb3 headlight adaptors 90 pre assembled easy to follow plug and play installation instructions.
12v Tips Five Easy 4wd Upgrades You Can Do At Home Morning
Hilux spotlight wiring diagram. One of the wires is the negative or ground wire. Wiring diagram for spot lights on a hilux. Hilux repair manual hilux new car. Kun15 16 25 26 series for service specifications and repair procedures of the above models other than those listed in this manual refer to the following manuals. This wiring diagram manual has been prepared to provide information on the electrical system of the hilux. Installation diy video toyota hilux with lightforce htx driving lights installation instructions.
This is a follow up from my previous question regarding the fitting of spotlights to my 2011 hilux sr. Toyota hilux electrical wiring diagram manual pdf download1984 2013go to download full manualgeneral information engine mechanical engine lubrication system engine cooling system engine controlsystem fuel systemexhaust system accelerator control system clutch manual transaxle automatictransaxle transfer. Toyota hilux electrical wiring diagram manual pdf download 1984 2013 1. Simple plug and wiring kit includes h4 hb3 headlight adaptors and clear easy instructions no guesswork required. A relay is an electrical switch. All you need is some wire and lugs a 12v 4 pole relay and two fuse holders with the correct fuses.

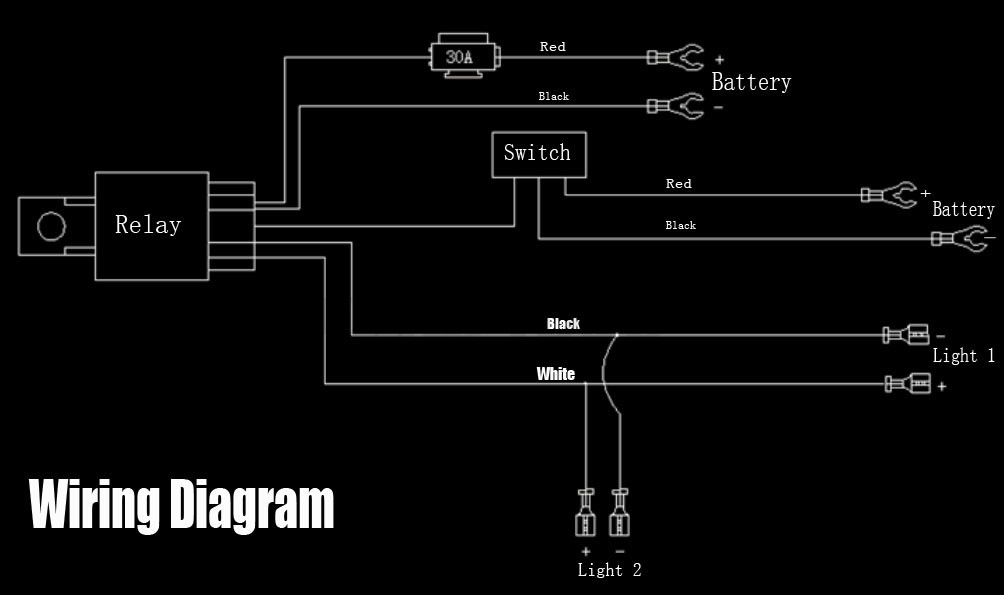

The other two are the positive wires one for the low beam and one for the high beam. The diagram below shows a simple wiring diagram for connecting spotlights to work together with your high beams. What is a relay. In other words if you are installing a 330w light bar that has a max drain of 275a then you should select fuse and wiring of over 33a. From there the ground. Kings spotlight wiring harness easy diy install waterproof plugs.
Need to wire spotlight relay into 09 hilux usaly 1 go to earth 1 goto power 1 go to switching wire and 1 goto answered by a verified au auto mechanic. It allows a low current switch circuit to control the electricity flow of a high current circuit. I went and had a look at a toyota diagram and they do indeed switch the ground side of the head light relay through the switch both lights on and dipper switch.
