Remote control light switch circuit diagram. Ir remote controls switch circuit. The whole project contains two parts which is an fm transmitter and a rf receiver. A relay switch is used at the output of the circuit which can be connected with the appliances to make them switch onoff. For good results use a good quality fm transmitter with the circuit. Block diagram of infrared remote control switch. The source is at sw1 and 2 wire cable runs from there to the fixtures.

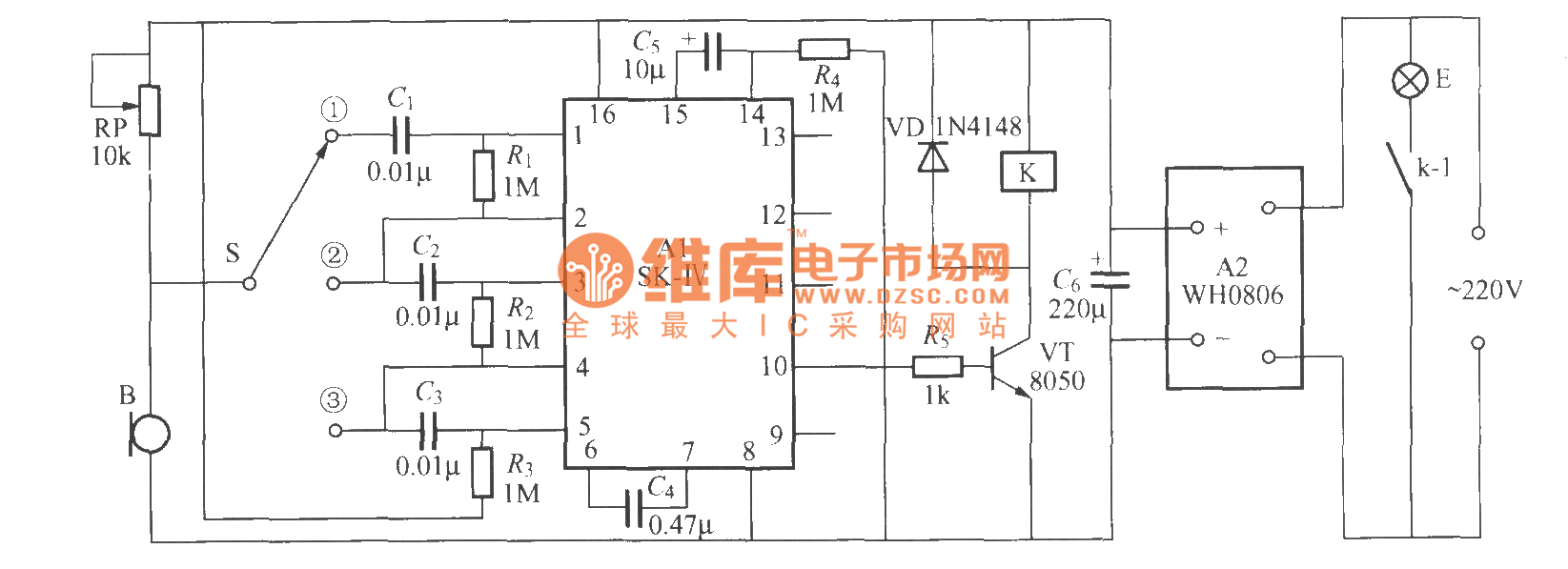

Circuit design of remote controlled light switch. The main components of the project are ic cd4017 and tsop 1738 ir receiver. Set your store to see local availability add to cart. The output of the ir receiver is a decoded output of the signal from remote control. The main function of this remote control switch is to control any load tv radio stereo fan light etc. Free delivery with 45 order.
The hot and neutral terminals on each fixture are spliced with a pigtail to the circuit wires which then continue on to the next light. Alternatively the relay circuit can be built as per the circuit diagram. The main components of this ir remote control switch are ca 3130 operational amplifier and 4018 counter. Ge wireless remote wall switch light control with grounded outlet receiver model 18279 15 93 15 93. Multiple light wiring diagram. Remote controlled switch circuit diagram notes.

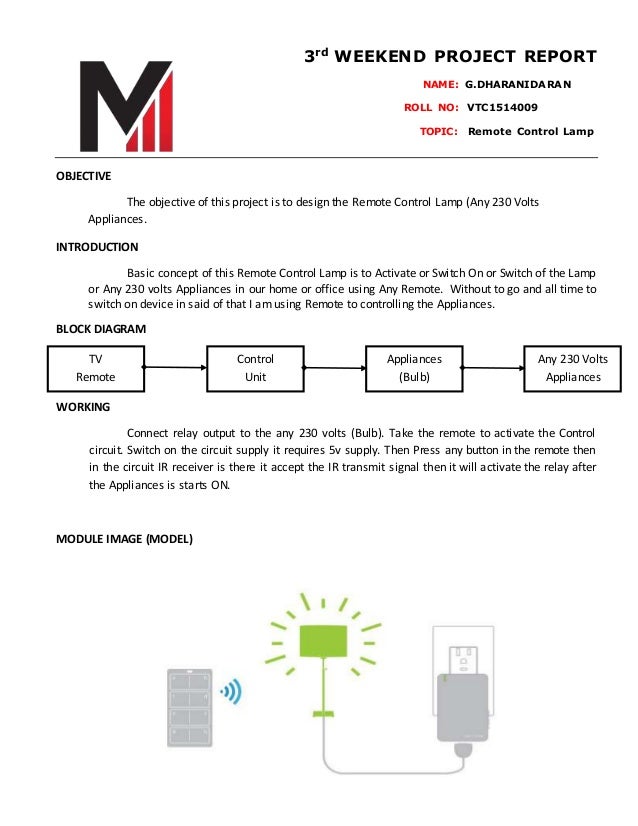

Remote controlled switch this is the very simple circuit diagram of ir remote control switch. In this circuit we are using one switch for operating the transmitter with this we can switch on or off the tv motor radio or any other home appliances. In this remote controlled switch circuit we are using tv remote to onoff the ac light by pressing any button of remote and using the tsop1738 at receiver end. Receiver circuit is connected to ac appliance via relay so that we can control the light remotely. A single channel relay board is sufficient. We have used ic 4017 to convert it into a push on push off switch.
Before wiring the circuit make sure that the carrier frequency of the tv remote you have is 38 khzfor that wire the sensor part only point your remote to the tsop1738 and press any switchif out put of tsop1738 goes low then ok your remote is of 38khz typenothing to worry almost all tv. Free delivery with 45 order. The infrared remote control switch is divided into two sections. The ca 3130 op amp is a bicmos operational amplifier and it has a high input impedance a low input current and a high speed performance. This diagram illustrates wiring for one switch to control 2 or more lights. Tp link smart wi fi light switch with 3 way kit model hs210 kit 44 99 44 99.
The circuit has also a good range of upto 20 meters. In this video i have made a remote relay switch which can be used to control lights or any home appliance wireless with an infrared remote any remote can be used with this circuit.
