3 phase selector switch wiring diagram. Voltmeter selector switch wiring diagram for 3 phase the wiring connection and voltmeter selector switch wiring diagram is too simple and the connection is same as we do for ammeter selector switch same we connect the l1 l2 and l3 supply connection to rst. All the wiring connections are same as above for manual operation of three phase changeover switch but the switching operation is automatic. Wiring diagram book a1 15 b1 b2 16 18 b3 a2 b1 b3 15 supply voltage 16 18 l m h 2 levels b2 l1 f u 1 460 v f u 2 l2 l3 gnd h1 h3 h2 h4 f u 3 x1a f u 4 f u 5 x2a r power on optional x1 x2115 v 230 v h1 h3 h2 h4 optional connection. How to install three phase automatic transferchangeover switch fig 5 shows 4 poles 3 phase automatic transfer switch ats connection to the main distribution board. 63 amp rated 3 terminal connectors 2 4. A toggle switch for switching on off the voltmeter 1 5.
0 230 v digital voltmeter 1 5. 1 cm and 5mm thick mdf board 2. So come to the ammeter selector switch wiring diagram 3 days ago i am downloading and collecting some e book for him self and i find out a wiring connection diagram of amp selector switch in a e book pdf file which i highlight with text and make more easy to understand and you can see it below. 63 amp 4 pole changeover switch on load type 3 its lt make model number was not mentioned anywhere 3. Hello friend in this video i will explain u how to do wiring and switching of 3 phase change over from 3 phase electric meter to 3 phase generator mode for more information comment down in the. Here is a picture gallery about 3 position selector switch wiring diagram complete with the description of the image please find the image you need.
3 position selector switch 2. And get connection for a1 and a2 to voltmeter as shown in above voltmeter selector. 720 copper wire a few meters 7. Need help wiring 3 position selector switch for brewtroller home within 3 position selector switch wiring diagram image size 640 x 480 px and to view image details please click the image. In this video i guide complete about ammeter rotary switch and its. Phase indicator lamps ryb 3 6.

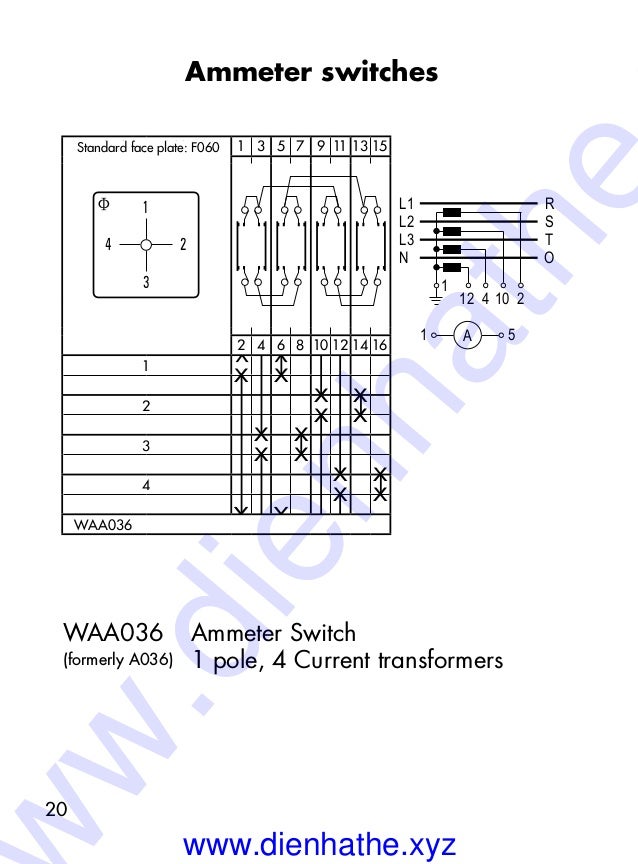

A complete guide of ammeter selector switch wiring diagram or rotary switch wiring diagram for 3 phase system load testing.
