Valve starts to shift but does not complete reversal action. It is used at room air conditioners packaged and central air conditioners.
4 Way Reversing Valve Pump 4 Way Reversing Valve Diagram

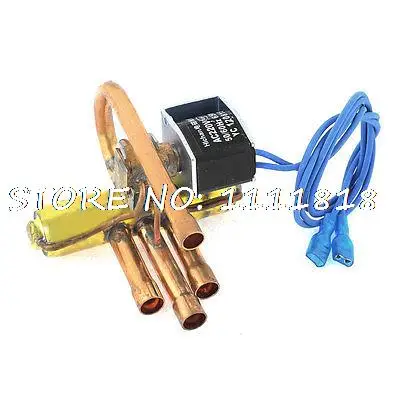

4 way reversing valve diagram. How does the heat pump reversing valve work duration. Valve will not shift from heating to cooling. A four way reversing valve has four pipe connections three of them on one side and the fourth on the opposite side whereby the three copper connectors have a larger diameter than the one on the opposite side. A 4 way reversing valve is used to swap the functions of the evaporator and condenser in order to change from cooling to heating mode. The middle one of the three large diameter connectors is permanently on the suction side and the single small diameter connector is. How to change a reversing valve the easy way duration.

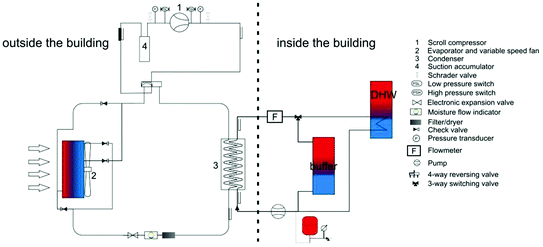

The reversing valves are designed for heat pump systems with capacity from 3kw to 580kw. Construction of 4 way reversing valve. The diagram below shows a heat pump piping layout. Problems experienced with reversing valves fall into four general categories. B class 6coil temperature rise. This type of valve is used to completely reverse the flow in a reversible system.
Shown here the heat pump cooling works like any cooling system when it is in cooling mode. Here we can see the analysis diagram from inside and outside here is an important parameter in consideration. 4 way valve with operating control used for heat pumps. Shown here the heat pump cooling works like any cooling system when it is in cooling mode. Because the heat pump uses of reversible mechanical refrigeration cycle such device is not required. Valve suffers apparent leak when shifting.
The solder connection at the pilot tube and valve allows for increased reliability and low leakage probability. 4 way reversing valve. This is called the 4 way valve because it has four connections refrigerant pipes. Swift changeover and reliable operating under the low pressure difference. The 4 way reversing valve is the key component to provide heating and cooling from the system to the air conditioned space by reversing the flow direction of refrigerant. Sanhua reversing valves switch between cooling and heating mode by changing the flow of the refrigerant.
Such valves may be used when both heating and cooling modes are required or to provide an effective energy efficient defrosting method. This is called the 4 way reversing valve because it has four connections refrigerant pipesbecause the heat pump uses of reversible mechanical refrigeration cycle such device is not required. 4 way reversing valves construction a 4 way reversing valve has four ports for tube connections. Not more than 80k. Tony morrison 40392 views. Reversing valve problems.
Valve will not shift from cooling to heating. The reversing valves are compatible with all common hcfc and hfc refrigerants and are ul recognized with. 4 way reversing valve with operating control used for heat pumps. 5 7w 5insulation class. To avoid confusion it is common practice to call heat pump coils the indoor and outdoor coil.
