The peak starting torque is 33 of full load torque. Characteristics features of star delta starter.
Control Wiring Diagram Of Star Delta Starter Pdf Wiring

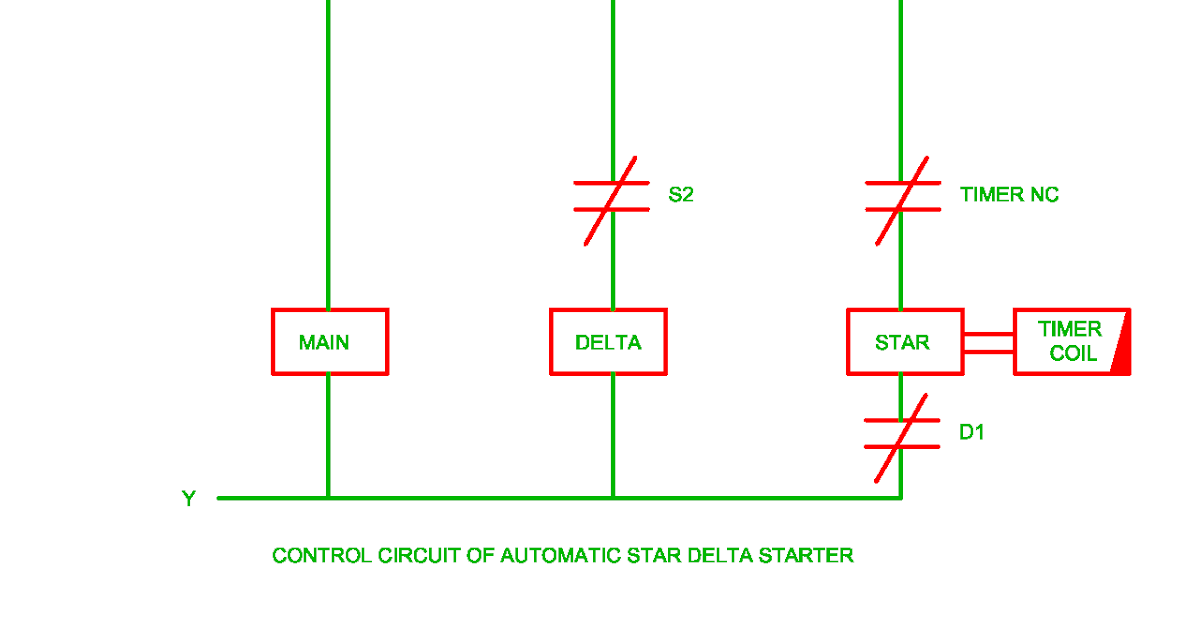

Control circuit of star delta starter pdf. Controlling the interchanging star connection and delta connection of an ac induction motor is achieved by means of a star delta or wye delta control circuit. The most active post in electrical engineering centre blog is star delta starter and star delta motor connectioni received many comments and request for star delta circuit diagram. Automatic star delta starter design normally consists of three contactors an overload relay or circuit breaker and a timer for setting the time in the star position starting. Star delta starter can be used only for low to high power three phase induction motors. The control circuit consists of push button switches auxiliary contacts and a timer. Control circuit of star delta starter open transition.
The starting current is 33 of full load current for star delta starter. So this time i want share my simple star delta circuit diagram completed with power and control line circuiti hope it can be as basic reference for all electrician about star delta starter diagram. The peak starting current is 13 to 26 of full load current. This equipmentappliance reduces starting current and starting torque. Here the circuit diagram of star delta starter explained in detailhere you will learn the connection of star delta starter with three phase motorthe power circuit diagram and control circuit diagram of an automatic star delta starter are explained belowlets understand the star delta starter diagram. Circuit documents 8 19 power supply 8 21 control circuit supply 8 24 contactor markings 8 25 direct on line start of three phase motors 8 26 control circuit devices for direct on line start 8 34 star delta switching of three phase motors 8 35 control circuit devices for star delta starting 8 45 pole changing motors 8 47.
