This page shows it wired in the old cable colours if your house has the new colours you want to go here. This allows a single light to be turned on or off from any of the switches.
How Can We Switch A Single Phase Motor Forward Reverse And
Intermediate switch wiring diagram pdf. At the other end you connect the other 3 way switch with either the line or the load. Application and uses of intermediate switch. 3 way switch wiring diagram pdf you will want a comprehensive professional and easy to understand wiring diagram. Here we have a 3 way switching lighting circuit sometimes called two way switching with intermediate. Note that you will have to use a push in connector or any other regular connector to connect the brown wires together. Staircase wiring circuit diagram how to control a lamp from 2 places 2 way light switch.
Terminal positions may alter. Simply connect all the wires according to the wiring diagram. Intermediate switch is mostly used in a hall big rooms or godown where different lamps are needed to onoff from different places. The above diagrams. Now it is time for the intermediate switch to be wired up. Switch dotted lines show alternative switch positions lamps 1 1 2 2 intermediate switch two way switching plus intermediate switching 3 wire control l 1 1 2 1 2 2 common 1 2 common two way switch two way dotted lines show alternative switch positions intermediate switch n lamps swl nb.
Follow the switch manufacturers instructions and wiring diagram as the connections on the switch vary by manufacturer. Sometimes the switch wiring connection diagram is printed on the inside of the 4 way switch packaging box see example below. Not only will it help you attain your required final results quicker but also make the whole process. 2 way switch any number of intermediate switches can be wired between the 2 way switches intermediate switch 2 way switch wiring diagram for csmi intermediate switch load n csmi wiring diagrampdf 07 april 2017 1 3 1 c 4 2 2 1 c 2 electrical accessories. This is because there is no dedicated connection for this on the intermediate switch. With this kind of an illustrative guide youll be able to troubleshoot stop and complete your projects with ease.

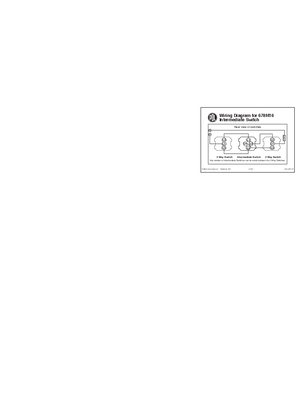

Related electrical wiring tutorial. Wiring diagram for 678m16 intermediate switch rear view of switches 2 way switch intermediate switch 2 way switch any number of intermediate switches can be wired between the 2 way switches p n load l3 l2 l1 l1 l4 l2 l3 l2 678m16 wiring diagrampdf 7 september 2007 379301 rev0 cn13722 wiring diagram for 678m16.
