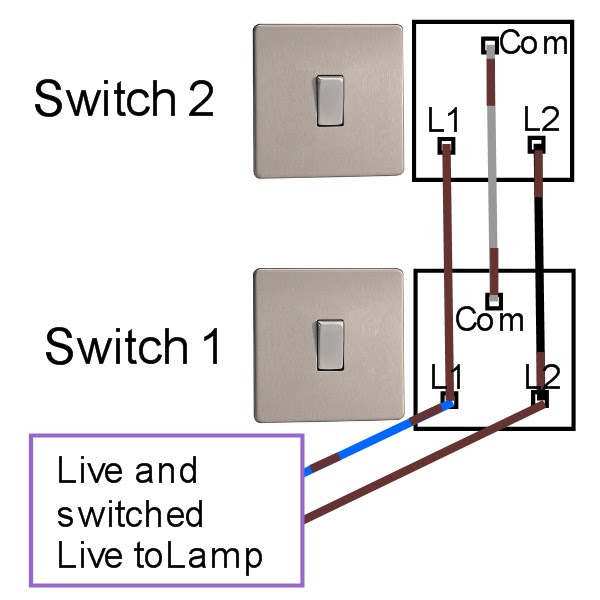

Two way switch connection for light. In this article simple two way light switch connection described with neat circuit diagram and wiring details. The three terminals are usually named com l1 and l2 but sometimes com 1 way and 2 way are also used. You have an incoming hot wire black going to one screw it does not matter if you use the brass or silver screw on the side of the 2 way switch and a black wire from the other screw on the 2 way switch going to the load light ceiling fan etc. Once you pull the 14 3 cable and the circuit power source wires from the switch boxes. Making onoff light from two end is more comfortable when we consider stair case two way light control is simple and easy to construct. Share on tumblr 2 way light switches are helpful to turn on or turn off light from different end locations.
With a pair of 3 way switches either can make or break the connection that completes the circuit to the light. Wiring two switches to one light fixture adds convenience to any room with two entryways. The three way switch is a variation of the standard single pole switch which controls a light only from one locationa third type is the four way switch which is used in conjunction with two three way switches to control lighting from more than two locationsthis configuration may be used in open plan homes or in large kitchens or great rooms where a central bank of lighting fixtures might. Two way switch can be operated from any of the switch independently means whatever be the position of other switchonoff you can control the light with other switch. Wiring a 3 way light switch is certainly more complicated than that of the more common single pole switch but you can figure it out if you follow our 3 way switch wiring diagram. 2 way light switch 3 wire system new harmonised cable colours 2 way switch 3 wire system old cable colours 2 way switch two wire control three way switching.
A 2 way switching connection means you can control an electrical equipment like bulb by two switches placed at different places generally used in the staircase. Before proceeding an important component called a two way light switch is the main element of the 2 way switching irrespective of the type of wiring used. 3 way light switching new cable colours 3 way light switch old cable colours 3 way light switch using a two wire control. Also known as three way switching the job calls for a pair of special three way switches and an appropriate length of 14 3 conductor cable to join the switches together. It is a standard single pole switch with three terminals.
