The green screw obviously ties to the bare ground wire. Next using a screwdriver unscrew the existing outlet on the other side of the wall outlet from its box and punch out one of the knock outs at the back of the box.
Wall Outlets Plugs Wiring Diagrams Wiring Diagrams

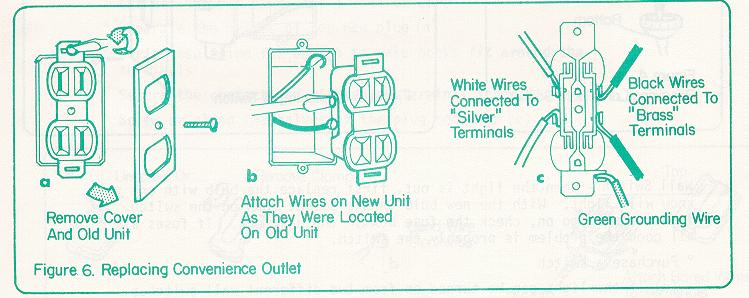

Wall outlet diagram. The hot black wire should connector to the brass colored screw. The long slot on the left is the neutral contact and the short slot is the hot contact. Wiring a grounded duplex receptacle outlet. The only difference is that depending on where the receptacle is located in the wiring scheme of your house it may have more wires attached to it than you find attached to a light switch. Dont use this receptacle when no ground wire is. How to wire an electrical outlet wiring diagram wiring an electrical outlet receptacle is quite an easy job.
You can push in the cable to the box before screwing or nailing the box to the wall. Heres how to use electrical testers. If an outlet commonly called a receptacle no longer holds a plug snugly it should be replacedthe procedure for replacing a duplex two outlet wall receptacle is similar to that of replacing a switch. Aluminum wiring requires special handling. A grounded contact at the bottom center is crescent shaped. Electrical outlet safety to help avert electrical fires in your living room consider installing afci or arc fault circuit interrupter outlets.
This is a polarized device. If you have aluminum wiring call in a licensed pro whos certified to work with it. Standard wall outletreceptacle wiring. There is a tab between each of the screws of similar color. These electrical receptacles detect arc faults which happen when there is damage in the circuit wiring. When wiring a wall outlet the neutral white wire should connect to the white or silver metal screw.
Ensure the cable you feed in is long enough to reach the. This is a standard 15 amp 120 volt wall receptacle outlet wiring diagram. If you are fixing more than one outlet the wiring can be done in parallel or in series.
