The control circuit consists of push button switches auxiliary contacts and a timer. A 8 pin timer are used.
Star Delta Starter Control Circuit Diagram With Timer

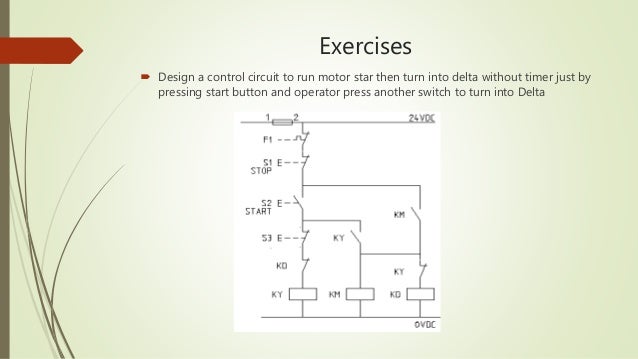

Star delta starter control circuit diagram without timer. Star delta starter control circuit diagram is today topic. In the above star delta starter control circuit wiring diagram with timer and normally close push buttonnormally open push button switch. In the above star delta starter control circuit wiring diagram with timer and normally close push buttonnormally open push button switch. R y b red yellow blue 3 phase linescb general circuit breakermain mai supplyy starδ deltac1 c2 c3 contatcors power diagramol over load relayno normally opennc normally closed k1 contactor contactor coil k1no contactor holding coil. Its not 100 accurate but at lease we can get the approximate time for change over timer of star delta starternormally the base line for timer setting is around 10 until 20 second. These two method that id explained above is a basic measurement technique that we can use to determine the approximate time for change over of star delta starter.
In this tutorial we will show the star delta y δ 3 phase induction ac motor starting method by automatic star delta starter with timer with schematic power control and wiring diagram as well as how star delta starter works and their applications with advantages and disadvantages. The on delay timer diagram is also shown in the diagram. A star delta starter is a type of reduced voltage starterwe use it to reduce the starting current of the motor without using any external device or apparatus. Star delta starter control circuit diagram is today topic. In this post you will learn complete star delta starter wiring with timer normally open push button switch and normally close push button switch. Star delta starter without timer for 3 phase induction motor.
Power control wiring diagram of star delta starter. In control wiring diagram all magnetic contactors coils are rated 220 vac. Star delta connection duration. In my last post i share a star delta starter wiring diagram 3 phase motor connection. Star delta starter control circuit diagram. Star delta wiring diagram electrical engineering updates.
Control circuit of star delta starter open transition. 3 phase motor star delta starter without timer relay. Ryb electrical 597416 views. This is a big advantage of a star delta starter as it typically has around 13 of the inrush current compared to a dol starter. In control wiring diagram all magnetic contactors coils are rated 220 vac. Controlling the interchanging star connection and delta connection of an ac induction motor is achieved by means of a star delta or wye delta control circuit.
Star delta starter control circuit diagram.
